Home > Sheet and Plates > Stainless Steel Chequered Plate
Mitchell Stainless is a reputable manufacturer and supplier of top-notch Stainless Steel Chequered Plates based in Hamilton, New Zealand. They pride themselves on delivering products that are built to last, ensuring durability, safety, and long-term performance. With a strong focus on precision manufacturing and adherence to international quality standards, their chequered plates boast exceptional strength, corrosion resistance, and anti-slip features. Catering to various industries, including construction, transportation, marine, and industrial sectors, Mitchell Stainless guarantees reliable supply, competitive pricing, and outstanding customer service. Their advanced production capabilities and rigorous quality control make them a go-to choice in Hamilton for Stainless Steel Chequered Plates that meet even the toughest operational demands.
The Stainless Steel Chequered Plates from Mitchell Stainless are typically crafted from high-quality stainless steel alloys like SS 304, 304L, 316, and 316L. These materials are rich in chromium, nickel, and molybdenum, which provide excellent corrosion resistance and structural integrity. The plates are designed with high tensile strength, impressive yield strength, and superior hardness, making them perfect for heavy-duty applications. Their chequered pattern not only enhances grip but also improves slip resistance. Plus, these plates offer good weldability, formability, and impact resistance, ensuring reliable performance in tough environments and long-lasting durability for both industrial and commercial uses.
ASTM A182 / ASME SA182
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
1000mm x 2000mm, 1000mm x 2500mm, 1220mm x 2440mm, 1250mm x 2500mm, 1500mm x 3000mm
| Grade | C | Mn | P | S | Si | Cr | N | Ni | Fe |
| SS Chequered 304 Plates | 0.07max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | – | min: 8.0 max: 10.5 | – |
| SS Chequered 304L Sheets | 0.03max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | 0.10 max | min: 8.0 max: 12.0 | – |
| SS Chequered 304H Plate | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | 0.75 max | 2.0 max | min: 0.04 max:0.10 | 0.045 max | 0.10 max | 0.03 max | – |
| SS Checkered 316 Sheets | Min | – | – | 0 | – | – | 10.0 | 16.0 | – |
|---|---|---|---|---|---|---|---|---|---|
| Max | 0.08 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Checker 316L Plates | Min | – | – | – | – | – | 10.0 | 16.0 | – |
| Max | 0.03 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Chequered 316H Sheet | Min | 0.04 | 0 | – | 0.04 | – | 10.0 | 16.0 | – |
| max | 0.10 | 0.75 | 0.045 | 0.10 | 0.03 | 14.0 | 18.0 | – |
| Grade | Density | Yield Strength (0.2%Offset) | Tensile Strength | Melting Point | Elongation |
| Stainless Steel 304 / 304L Checkered Plate | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 304H Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 40 % |
| Stainless Steel 310 Checker Plate | 7.9 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1402 °C (2555 °F) | 40 % |
| Stainless Steel 316 Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 316L Checker Plate | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1399 °C (2550 °F) | 35 % |
| Stainless Steel 317 Checker Sheets | 7.9 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 321 Checkered Plates | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1457 °C (2650 °F) | 35 % |
| Stainless Steel 347 Checker Sheets | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1454 °C (2650 °F) | 35 % |
| Stainless Steel 904L Checker Plate | 7.95 g/cm3 | Psi 32000, MPa 220 | Psi 71000, MPa 490 | 1350 °C (2460 °F) | 35 % |
Contact us to get a quick quote for your requirement.
304 stainless steel checker plates are durable, non-corrosive, and offer a slip-resistant surface. Ideal for industrial and commercial use, they combine strength with a lightweight, aesthetically pleasing design.
SS S30409 checker plates are high-quality stainless steel with excellent corrosion resistance and durability. Ideal for demanding environments, they offer a slip-resistant surface and maintain structural integrity under stress.

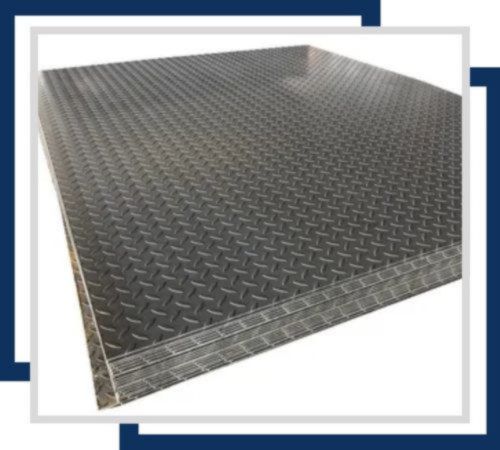

Stainless Steel S31609 chequered plates provide superior corrosion resistance and strength, making them ideal for marine and chemical environments. They offer excellent durability, slip resistance, and maintain integrity under harsh conditions.
Austenitic stainless steel chequered plates offer exceptional corrosion resistance, strength, and durability. Ideal for demanding environments, they provide a slip-resistant surface and maintain structural integrity in various industrial and commercial applications.
Quality is our prime concern, and hence our Stainless Steel Chequered Plates undergo exhaustive checks, like hardness, chemical analysis, PMI testing, flattening, micro/macro testing, pitting resistance, flaring, and IGC testing. We also supply related documentation as commercial invoices, packing lists, certificates of origin, and guarantee letters. In addition, we have our Third-Party Inspection Certificate to prove overall customer satisfaction to reassure customers of the guaranteed reliability and performance of our products.
Yes, Stainless Steel Chequered Plates are suitable for hygienic and sanitary applications due to their corrosion resistance, ease of cleaning, and non-porous surface, making them ideal for food and medical industries.
Stainless Steel Chequered Plates are generally resistant to galvanic corrosion when used in appropriate environments. However, in the presence of dissimilar metals and moisture, galvanic corrosion can occur if proper precautions aren’t taken.
Yes, Stainless Steel Chequered Plates are suitable for cryogenic applications due to their excellent low-temperature strength, durability, and resistance to brittle fracture, making them ideal for extreme environments.
To select the right Stainless Steel Chequered Plate, consider factors such as corrosion resistance, load-bearing capacity, surface finish, thickness, and environmental conditions, ensuring compatibility with your specific application needs.
Mitchell Stainless’s Stainless Steel Chequered Plates are widely utilized across various industries thanks to their strength, anti-slip surface, and corrosion-resistant qualities. They’re commonly found in flooring for industrial plants, walkways, stair treads, and ramps where safety is a top priority. In the transportation sector, these plates are used in truck beds, trailers, and loading platforms. The marine and offshore industries depend on them for decks and platforms exposed to harsh conditions, ensuring safety and reliability in every application.
