Mitchell Stainless, a reputable manufacturer and supplier located in Hamilton, New Zealand, is well-known for providing high-performance Stainless Steel 904L Sheets and Plates designed for tough industrial settings. With a strong focus on quality, precision, and durability, Mitchell Stainless delivers corrosion-resistant 904L materials that comply with global standards, ensuring they last for years. Their cutting-edge production capabilities, rigorous quality control, and customer-centric approach have made them a go-to supplier in New Zealand and beyond. Whether it’s for chemical processing, marine engineering, or high-temperature applications, Mitchell Stainless has premium 904L sheet and plate solutions built to excel in the most demanding conditions.
The Stainless Steel 904L Sheets and Plates from Mitchell Stainless are crafted with high levels of chromium, nickel, molybdenum, and copper, offering outstanding resistance to acids, chlorides, and pitting corrosion. This low-carbon grade guarantees excellent weldability and stability, even in tough environments. Mechanically, 904L boasts superior strength, impressive tensile properties, and remarkable toughness across a wide temperature range. Its non-magnetic nature and enhanced resistance to stress-corrosion make it perfect for critical applications that demand durability, formability, and long-lasting reliability under extreme operational conditions.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19 – 23 | 4 – 5 | 23 – 28 | 1 – 2 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.

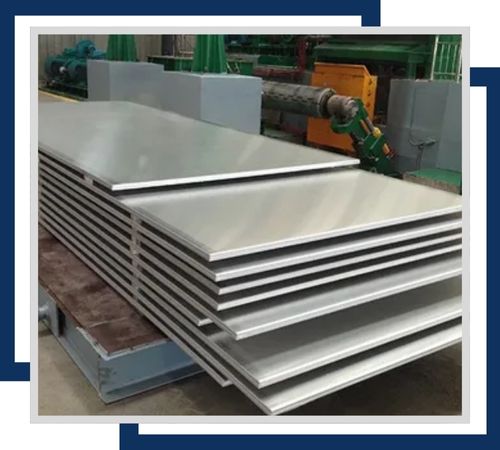

Stainless Steel 904L hot rolled sheets exhibit excellent corrosion resistance in aggressive conditions, such as acids and chlorides. Thicknesses range between 3mm to 25mm, while widths can be up to 2 meters in size. This sheet is employed in heavy-duty applications where robust structural integrity is demanded.

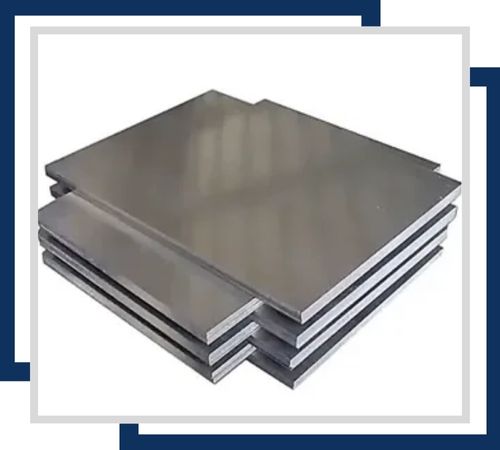

Stainless Steel 904L Cold Rolled Plates are alloyed with austenitic with excellent corrosion protection against strong acids and chlorides. These 904L sheets are available up to 0.5-3 mm, with widths ranging up to 1.5 meters. Plates are also featured with a highly smooth surface polish that can use for precise aesthetics.

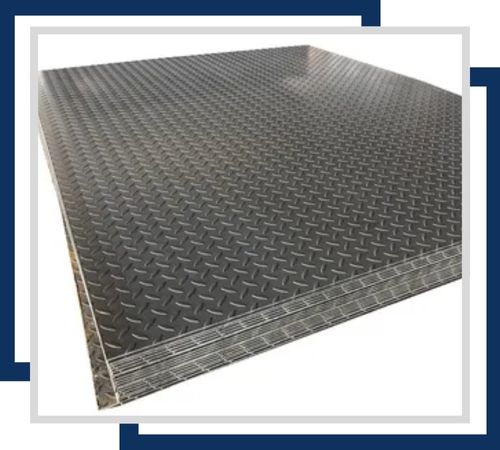

Stainless Steel 904L Chequered Sheets have a patterned surface that enhances slip resistance while maintaining excellent corrosion resistance. Available in common thicknesses of 2 mm to 6 mm and up to 1.2 meters in width, these sheets are ideal for flooring and other high-traction surfaces.

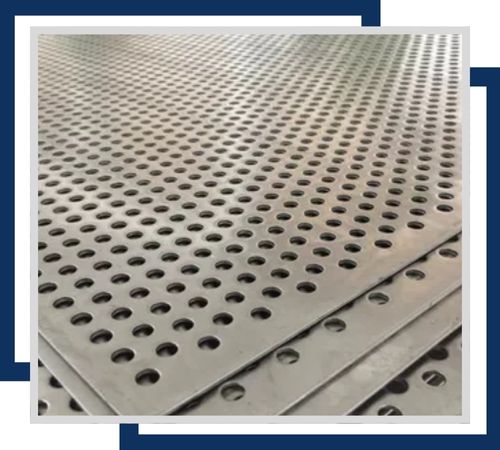

Stainless steel perforated plates from the 904L grade combine corrosion resistance with customized perforation patterns for ventilation and filtration. Thicknesses range from 1 mm to 8 mm, and the size up to 1.2 meters by 2.4 meters accommodates industrial and architectural applications.

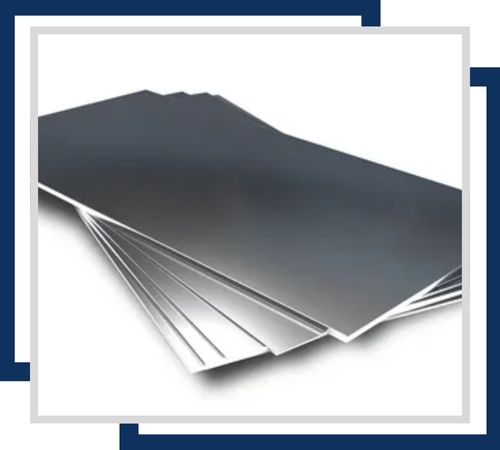

Stainless Steel 904L Shim Sheets are excellent resistance to aggressive environments and precise thicknesses for the application. Normally available in a thickness range from 0.1 mm up to 3 mm and size up to 1 meter by 2 meters, these sheets are used for gap filling and alignment.

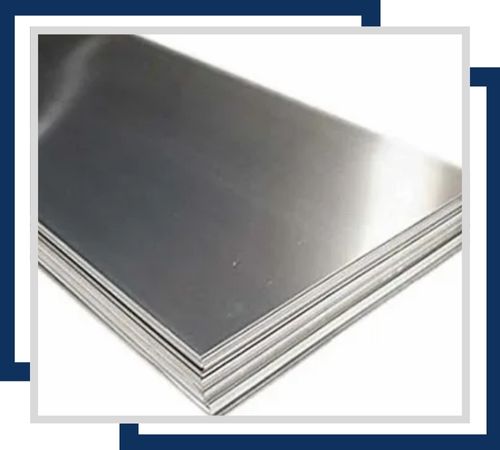

Stainless Steel 904L Polished Plates are known for their excellent finish and high corrosion resistance. They are very suitable for decorative and high-end applications. Thicknesses available are from 1 mm to 50 mm, and the maximum dimensions can go up to 2 meters by 6 meters, making them aesthetically pleasing and durable.
Mitchell Stainless is committed to providing an experience of excellence to all its customers who purchase our Premium Quality Stainless Steel 904L Sheets and Plates by providing complete documents. We send the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report, which certifies the originality and high quality of our products. To further boost the confidence of our clients, we provide the Stainless Steel 904L Sheets and Plates with a range of test certificates, such as MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. We express our promising commitment to our customers in terms of satisfaction, and on going to evolve into excellence in product quality.
Mitchell Stainless’s Stainless Steel 904L Sheets and Plates are extensively utilized in industries that require top-notch corrosion resistance and structural integrity. They are perfect for chemical processing equipment, acid storage tanks, heat exchangers, and pharmaceutical machinery, thanks to their ability to handle aggressive media. In marine settings, 904L shines in seawater applications, making it ideal for offshore platforms, desalination plants, and shipbuilding components. Additionally, its high strength and durability ensure it meets the rigorous demands of various applications, providing peace of mind for engineers and manufacturers alike.
