Mitchell Stainless is a well-respected manufacturer and supplier of top-notch Stainless Steel 446 Sheets and Plates based in Hamilton, New Zealand. They cater to a variety of industrial sectors, delivering precision-engineered stainless solutions. With a strong dedication to quality, the company offers durable, heat-resistant, and corrosion-resistant 446 grade products that adhere to global quality standards. Their cutting-edge manufacturing processes, rigorous quality control, and customer-centric approach guarantee reliable performance even in tough conditions. Mitchell Stainless is the go-to choice for industries that need superior material strength and oxidation resistance, making them a preferred supplier for stainless steel sheet and plate solutions throughout Hamilton and its neighboring areas.
Stainless Steel 446 Sheets and Plates are primarily made up of high chromium content (up to 27%), which gives them outstanding oxidation and corrosion resistance at high temperatures. The alloy usually has low carbon levels, along with trace amounts of manganese, silicon, and sulfur to improve workability. In terms of mechanics, SS 446 boasts good tensile strength, excellent creep resistance, and stability under thermal stress. Its ferritic structure minimizes scaling and ensures strong performance in high-temperature settings. These characteristics make SS 446 a reliable choice for applications that demand durability and resistance to thermal fatigue.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| 446 | 0.20 max | 1.50 max | 0.75 max | 0.040 max | 0.030 max | 23.00 | 0.50 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|
| Psi – 75,000 , MPa – 485 | Psi – 40,000 , MPa – 275 | 20 % |
Contact us to get a quick quote for your requirement.

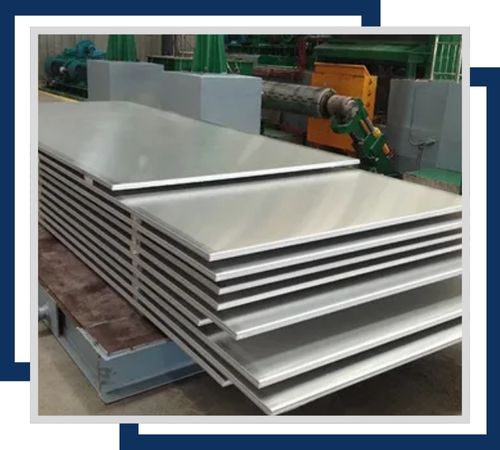

Stainless Steel 446 Hot Rolled Sheets resist high temperature oxidation and corrosion. It comes in standard sheet thickness ranging from 3mm to 50mm width up to 2000 mm and is the choice for many aggressive environments high-heat applications.

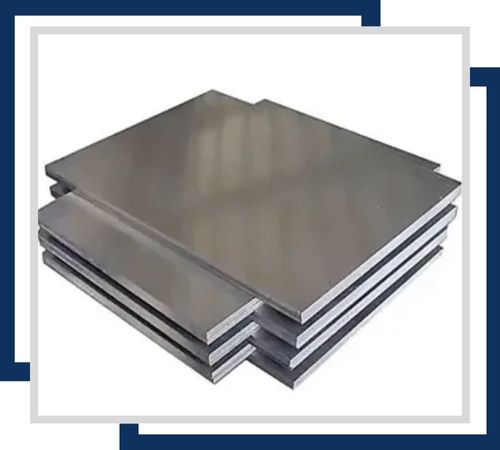

Stainless Steel 446 Cold Rolled Plates offer excellent surface finish and dimensional accuracy. Resistant to high-temperature oxidation and corrosion, these plates are available in thicknesses from 0.5 mm to 6 mm and widths up to 1500 mm. They are used in applications requiring precise tolerances.

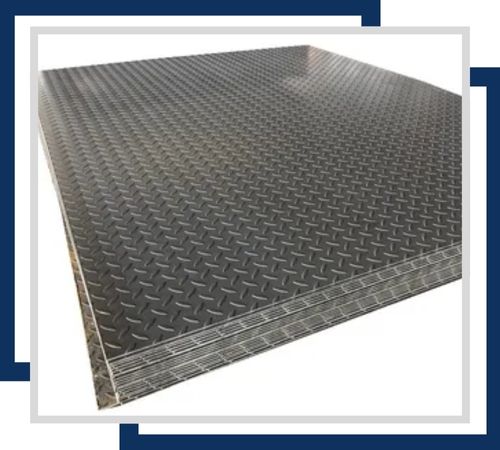

Stainless Steel 446 Chequered Plates come in a better slip resistance, which is more rugged. They contain a raised pattern on the top surface and, thus, they possess excellent resistance against corrosion. Their common thickness is 2 mm to 10 mm while dimensions are usually 1000 mm x 2000 mm. It suits best for industrial usage and floor purposes.

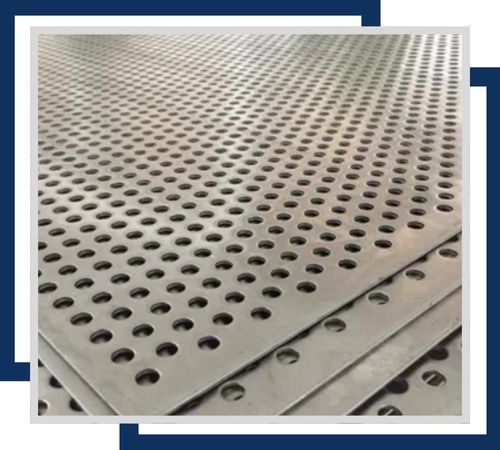

Stainless Steel 446 Perforated Sheets are sheets that combine corrosion-resistance with useful ventilation and filtering design. In various hole configurations and sizes they are offered for the following usual thicknesses-1mm through 5 mm and sheet sizes up to 1200 mm x 2400 mm. More appropriate for application in architectural and industrial use cases.

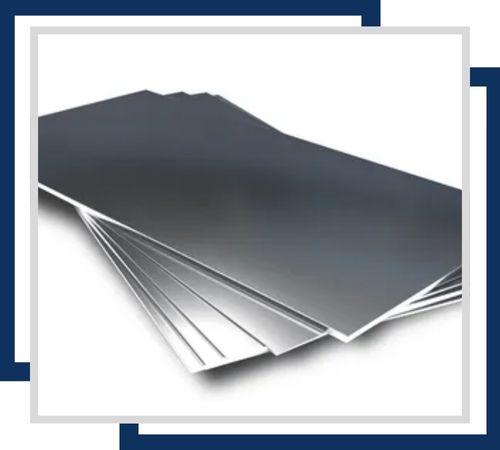

Stainless Steel 446 Shim Plates are used to fill gaps and provide precise spacing in mechanical assemblies. They offer excellent high-temperature and corrosion resistance in thicknesses ranging from 0.1 mm to 2 mm and dimensions up to 1000 mm x 1000 mm, which is ideal for precision applications.

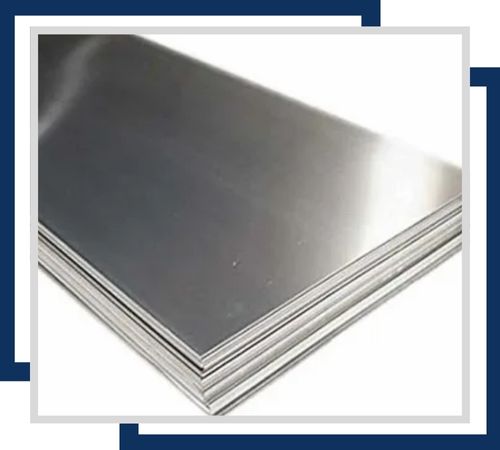

Stainless Steel 446 Polished Sheets have a smooth, reflective surface and high resistance to corrosion and oxidation at elevated temperatures. Thickness ranges from 0.5 mm to 5 mm and sizes up to 1500 mm x 3000 mm. They are widely used for decorative and high-visibility applications.
Mitchell Stainless is committed to an excellent customer experience with extensive documentation for its premium-quality Stainless Steel 446 Sheets and Plates. We provide necessary documents like commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports. These documents ensure the authenticity and superior quality of our products to our worthy customers. In addition, the Stainless Steel 446 Sheets and Plates we supply are accompanied with a variety of test certificates: MTC to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, Third Party Inspection certificates. These, in turn demonstrate our customer-driven approach and unrelenting excellence in our product lines.
Stainless Steel 446 Sheets and Plates are commonly utilized in high-temperature and corrosive settings due to their remarkable oxidation resistance and thermal stability. They find key applications in furnace components, heat exchangers, boiler parts, kiln linings, refinery equipment, and high-temperature burner systems. Additionally, they are essential in chemical processing plants, power generation units, and metal-treating industries where resistance to sulfurous gases and thermal cycling is crucial. In construction and fabrication, SS 446 is often the material of choice for components that are exposed to harsh conditions.
