Mitchell Stainless is a well-respected manufacturer and supplier of top-notch Stainless Steel 436 Sheets and Plates based in Hamilton, New Zealand. They specialize in providing durable and precisely engineered stainless solutions tailored to meet a variety of industrial needs. With a strong dedication to quality, the company ensures that their products adhere to global standards, making them perfect for sectors that demand exceptional heat resistance and corrosion performance. Their Stainless Steel 436 sheets and plates are produced using cutting-edge technology and undergo rigorous quality checks, guaranteeing consistent reliability and a long lifespan. As a leading supplier in Hamilton, Mitchell Stainless is committed to supporting industries with trustworthy materials, expert technical advice, and a customer-centric approach.
Stainless Steel 436 Sheets and Plates mainly consist of iron, chromium (16–18%), along with added molybdenum and titanium to boost stability and corrosion resistance. This ferritic grade is known for its excellent resistance to oxidation, high-temperature scaling, and chloride stress corrosion. In terms of mechanical properties, SS 436 offers moderate tensile strength, good hardness, and outstanding thermal conductivity. It maintains its structural integrity even at high temperatures and boasts better weldability compared to traditional ferritic grades. Its well-balanced composition ensures durability, dimensional stability, and suitability for demanding applications in automotive, industrial, and heat-exposed settings.
| Specifications | ASTM A240, ASME SA240 |
| Standard | JIS, ASTM, AISI, GB, EN, DIN |
| Surface | 2B, BA, HL, No. 4, Mirror etc. |
| Finish | Cold rolled, Hot rolled |
| Thickness | 0.3mm–100mm |
| Size | 1000mm, 1219mm, 1250mm, 1500mm, 1524mm, 2000mm |
| Grade | Fe | Cr | Ni | Mo | Mn | Nb | Si | Ti | Ta | C | P | S |
| SS 436 | 81.3 | 16 | – | 1 | 1 | 0.5 | – | – | 0.5 | 0.12 | 0.040 | 0.030 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness |
| 0.28 lbs/in3 7.74 g/cm3 | 2600 – 2750 ° F (1427 – 1510 °C) | 77 KSI min (531 MPa min) | 53 KSI min (365 MPa min) | 40 % | Rb 89 max |
Contact us to get a quick quote for your requirement.

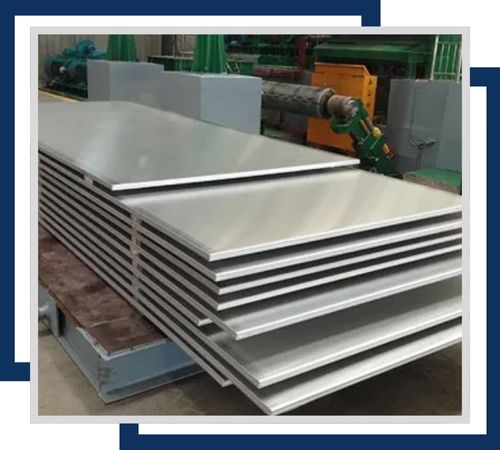

The alloy 436 stainless steel hot-rolled sheets possess excellent resistance to corrosion under conditions of high stress. Normally available in a form whose thickness runs from 3 mm up to 25 mm and width up to 2000 mm, this sheet is used in fabrication and construction.

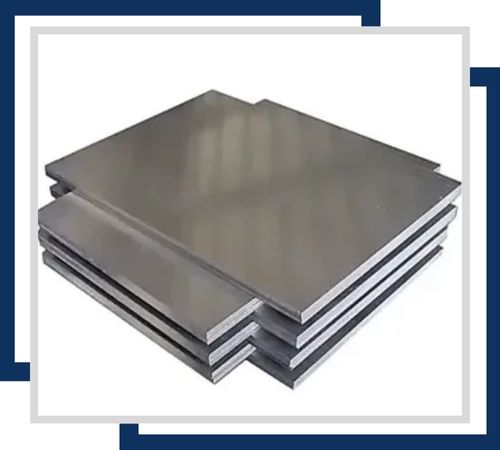

Stainless Steel 436 Cold Rolled Plates offer excellent resistance to corrosion as well as an excellent surface finish. Available in thicknesses of 0.5 mm-6 mm, and widths of up to 1500mm, these plates are perfect for applications that are precise and aesthetically designed.

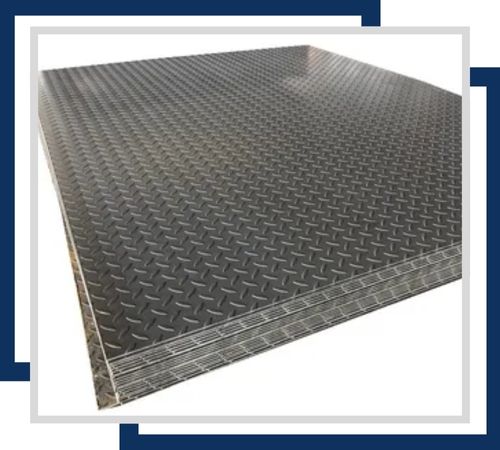

Stainless Steel 436 Chequered Sheets provide good corrosion resistance along with an anti-slip surface. The sheets are available in 1 mm to 6 mm thickness and in standard sizes up to 2000 mm x 1000 mm. Stainless Steel 436 Chequered Sheets are often used in flooring and safety applications.

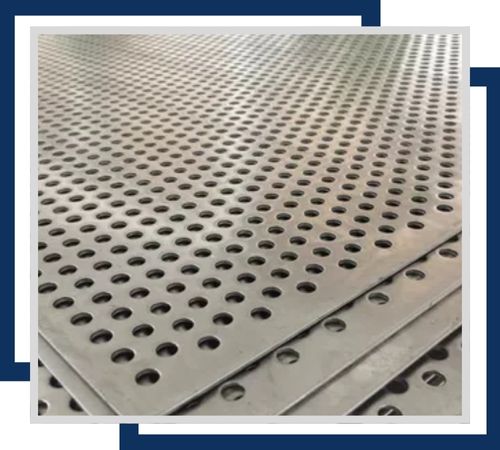

High-quality corrosion resistance is offered by stainless steel 436 perforated plates, available with custom hole patterns for effective ventilation and filtration. The product is supplied in thicknesses from 0.8 mm to 5 mm and sheet sizes up to 2000 mm x 1000 mm, and used in industrial and architectural applications.

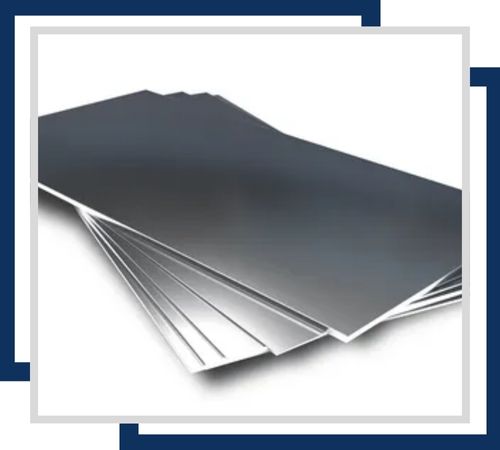

Stainless Steel 436 Shim Sheets, being reliable to corrosion resistance along with precise thicknesses for gap filling and alignment, are also available in usual thicknesses varying from 0.1mm to 3mm and usually up to a size of 3000 mm x 1500 mm with machinery and assembly processes.

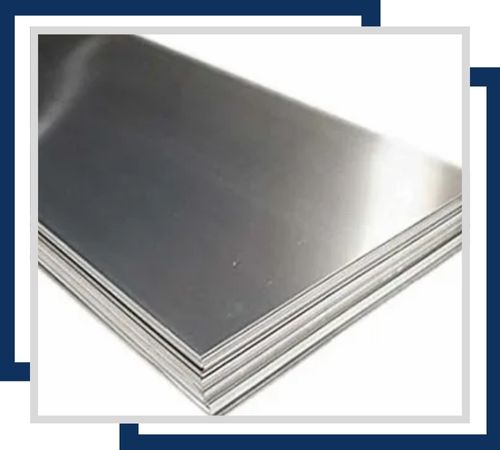

High corrosion resistance coupled with a polished finish, these Stainless Steel 436 Polished Plates are stocked in sizes up to 1500 mm x 3000 mm and can be supplied between 0.5 mm – 6mm thick. Such plates are predominantly used in decoration and architectural areas.
Mitchell Stainless has set out a commitment to provide the best customer services with complete documentation of its high-quality Stainless Steel 436 Sheets and Plates. The company provides primary documents such as commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports. All these documents ensure the genuinity and quality at their highest level of products and tend to increase trust and confidence among its users. Along with this, we also supply Stainless Steel 436 Sheets and Plates with multiple test certificates issued on MTC as per EN 10204/3.1b, PMI Test Certificate, radiography test reports on 100%, and third-party inspection certificate. The above proofs confirm our high regards for satisfaction to the esteemed customer and continually seeking excellence through the products produced by us.
Stainless Steel 436 Sheets and Plates find extensive use in industries that require high heat resistance and robust corrosion performance. They are perfect for automotive exhaust systems, heat exchangers, industrial furnaces, and equipment that faces elevated temperatures. Thanks to their thermal conductivity and oxidation resistance, they are also ideal for manufacturing burner parts, conveyor belts, and heating elements. In the realm of domestic appliances, SS 436 is frequently used for oven liners, stove components, and microwave interiors.
