Mitchell Stainless is a well-respected manufacturer and supplier of top-notch Stainless Steel 410S Sheets and Plates based in Hamilton, New Zealand. They pride themselves on delivering reliable products that are built to last and perform exceptionally. With a keen eye on precision manufacturing and consistent quality, this company caters to a variety of industries, including automotive, construction, chemical processing, and energy. Their Stainless Steel 410S sheets and plates are crafted using cutting-edge technology and meet international standards, ensuring outstanding corrosion resistance and strength. Mitchell Stainless is dedicated to timely deliveries, customer satisfaction, and ongoing innovation, making them a go-to supplier throughout New Zealand.
The Stainless Steel 410S Sheets and Plates from Mitchell Stainless are low-carbon martensitic stainless steels that contain chromium (11.5–13.5%), with iron as the primary element, along with trace amounts of carbon, manganese, and silicon. The lower carbon content improves weldability and reduces hardening during heat treatment. These sheets and plates boast good mechanical strength, moderate corrosion resistance, and excellent oxidation resistance at high temperatures. Typical properties include tensile strength ranging from 380–550 MPa, solid toughness, and stability during thermal cycling, making them perfect for high-temperature applications and fabrication needs.
Standard : ASTM / ASME A240 / SA240
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
| Element | SS 410S |
| C | 0.08 max |
| Mn | 1 max |
| Si | 1 max |
| P | 0.040 max |
| S | 0.030 max |
| Cr | 11.5 – 13.5 |
| Fe | 85 |
| Element | SS 410S |
| Density | 7.8 g/cm3 |
| Tensile Strength | psi – 64,400, MPa – 444 |
| Yield Strength (0.2%Offset) | psi – 42,000, MPa – 290 |
| Elongation | 33 % |
| Hardness | Rockwell B (HR B)- 75 / Brinell (HB)- 65 |
Contact us to get a quick quote for your requirement.

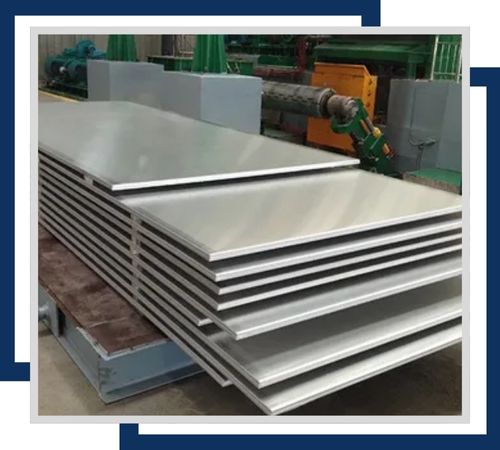

Stainless Steel 410S hot rolled sheets possess excellent corrosion resistance with high strength and toughness. The sheets come in a wide range of thicknesses, starting from 1.5 mm up to 20 mm with widths up to 2000 mm. These are suitable for high-impact resistant applications.

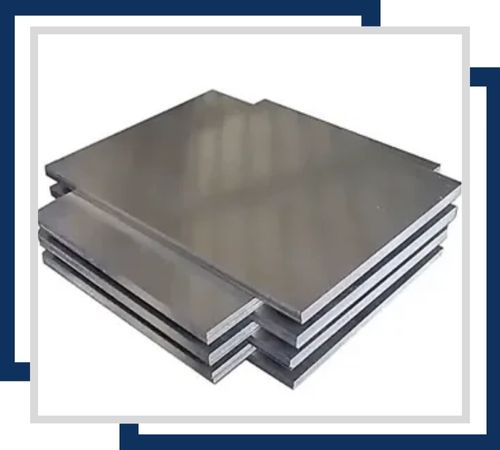

Stainless Steel 410S Cold Rolled Plates have corrosion resistance along with a smooth, bright surface finish. Usually made available in width up to 1500mm and in different thickness ranges such as 0.5-6 mm these plates are specially suited for use in precision engineering and for critical applications where closer tolerances apply.

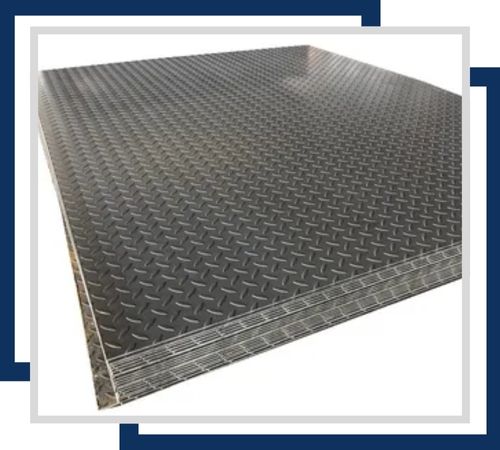

Stainless Steel 410S Chequered Sheets have a raised pattern, which gives excellent corrosion and slip resistance. These sheets are available in various thicknesses from 1.2 mm to 6 mm and up to 2000 mm x 1000 mm dimensions, which make them suitable for flooring and decorative applications.

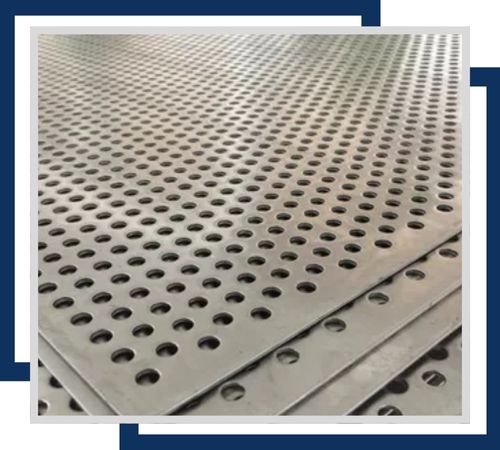

Stainless Steel 410S Perforated Plates combine protection against corrosion with increased ventilation and aesthetics. The perforated plates are available in a number of hole sizes and patterns, available in thicknesses ranging from 1 mm up to 4 mm and available in dimensions up to 2500 mm × 1200 mm for filters and screens.

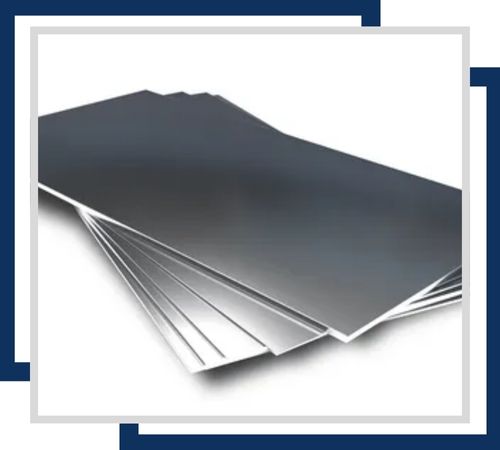

The Shim Sheets of Stainless Steel 410S are available with corrosion resistance and precise control over thickness. These sheets are available in 0.1 mm thickness up to 1000 mm x 1000 mm, cut to size for fine-tuning mechanical fits.

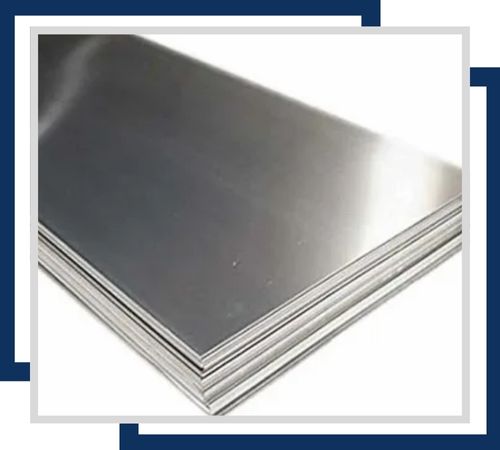

Stainless Steel 410S polished plates offer outstanding corrosion resistance and have a highly reflective finish. The plates are usually available in sizes up to 2000 mm x 1000 mm with thickness between 1mm and 6mm. Stainless Steel 410S Polished Plates are used in aesthetic applications as well as in decorative purposes.
Mitchell Stainless guarantees a high customer experience by completing all the necessary documentation of high-quality Stainless Steel 410S Sheets and Plates. We will provide our customer with commercial invoices, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and lab test reports certified by NABL-approved labs to prove authenticity and superior quality in our products that can give complete trust and satisfaction to our respected customers. Additionally, our Stainless Steel 410S Sheets and Plates are supplied with test certificates such as MTC as per EN 10204/3.1b, PMI Test Certificate, a 100% radiography test report, and Third Party Inspection Certificate. These certificates reflect our customer-focused approach and our very strong commitment to product excellence.
Mitchell Stainless’s Stainless Steel 410S Sheets and Plates are extensively utilized across various industries thanks to their heat resistance, durability, and structural reliability. They’re commonly found in automotive exhaust systems, refinery equipment, heat exchangers, and burner components that require consistent performance at elevated temperatures. Their enhanced weldability makes them a great choice for fabricated components in construction, industrial ovens, and chemical processing facilities. Additionally, 410S sheets and plates are also employed in food processing applications, showcasing their versatility and reliability in demanding environments.
