Mitchell Stainless stands out as a top manufacturer and supplier of high-performance Stainless Steel 321H Flanges in Hamilton, New Zealand. They cater to a variety of industrial sectors with precision-engineered products. Renowned for their dedication to quality, reliability, and a customer-first approach, the company offers flanges built to endure tough operating conditions, particularly in high-temperature settings. With state-of-the-art manufacturing facilities and rigorous quality control measures, Mitchell Stainless guarantees that every 321H flange adheres to international standards. Their expertise, technical support, and prompt delivery make them a trusted ally for clients in the petrochemical, power generation, refining, and mechanical engineering fields throughout New Zealand and beyond.
Stainless Steel 321H Flanges are an austenitic grade that’s stabilized with titanium and features a higher carbon content for enhanced high-temperature strength. This alloy typically includes chromium, nickel, carbon, and trace elements that boost corrosion resistance and structural integrity. These flanges are known for their excellent creep resistance, solid tensile and yield strength, and outstanding oxidation resistance in high-temperature environments. Their robust mechanical properties ensure they are reliable for continuous service, providing long-lasting performance in thermal processing systems, pressure piping, and structural connections that face cyclic and high-pressure conditions.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti | SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 321H Flanges Mitchell Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Mitchell Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.
Stainless Steel 321H Threaded Flanges are available in sizes ranging from 1/2″ to 24″ and are designed for easy assembly without welding. They offer good resistance to oxidation and corrosion, making them suitable for various industrial applications.

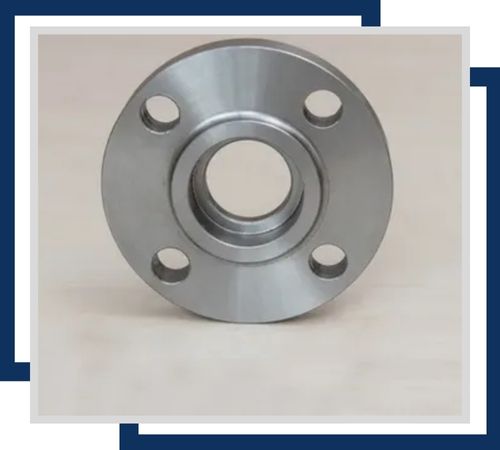

SS 321H Socket Weld Flanges, ranging from 1/2″ to 24″ in size, are designed to fit inside a pipe for strong, reliable connections. They provide excellent resistance to high-temperature environments and corrosive substances.

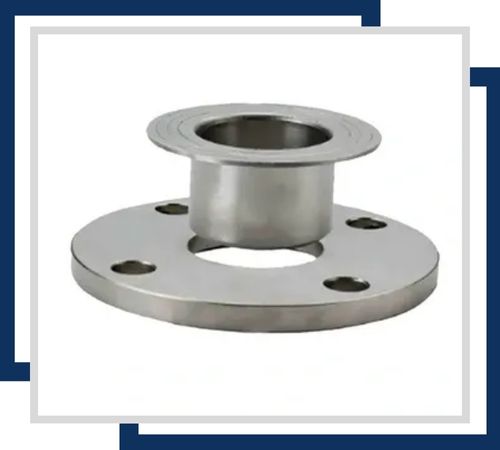

Stainless Steel 321H Lap Joint Flanges are available in sizes from 1/2″ to 24″ and are used with a backing flange to allow for easy alignment and assembly. They offer high resistance to oxidation and corrosive elements, ideal for applications with frequent disassembly.
The Stainless Steel 321H Flanges produced by Mitchell Stainless find extensive use in industries that demand exceptional heat resistance and consistent performance under thermal stress. They are perfect for high-temperature piping systems, refinery heater tubes, exhaust manifolds, steam lines, and chemical processing equipment. Thanks to the alloy’s superior mechanical strength, these flanges are also well-suited for power generation plants, petrochemical facilities, and aerospace applications.
