Mitchell Stainless has earned a solid reputation as a reliable manufacturer and supplier of Stainless Steel 317 tubing in Hamilton, New Zealand. We pride ourselves on delivering top-notch products that can withstand the rigors of demanding industrial settings. With a keen emphasis on precision engineering, quality assurance, and ensuring customer satisfaction, our tubing meets international standards and rigorous performance criteria. Known for its exceptional corrosion resistance, especially in harsh chemical and marine environments, our Stainless Steel 317 tubing is backed by our technical expertise and state-of-the-art manufacturing facilities, providing diverse industries with dependable supply, consistent quality, and tailored solutions for specific project needs.
Stainless Steel 317 tubing is an austenitic alloy that boasts a higher molybdenum content (around 3–4%) along with chromium and nickel, which greatly enhances its resistance to pitting and crevice corrosion. This alloy is known for its impressive tensile strength, good yield strength, and high ductility, ensuring reliable performance under pressure and at elevated temperatures. Additionally, Stainless Steel 317 offers excellent weldability, toughness, and resistance to chemical attacks, making it an ideal choice for challenging operating environments where standard austenitic grades might fall short.
| ASTM A213 / ASME SA 213 | Standard Specification for SS TP 317L Seamless Superheater, Condenser, Hydraulic, Boiler and Heat-Exchanger Tubes |
| Shapes | ASME SA213 TP317L Round, Rectangular, Square, Hydraulic, Straight, “U” Shape, Coiled, Honed Tubes, Pan Cake Coils |
| Manufacturing Type | Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded |
| Delivery Condition | Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF |
| Surface Finish | BA, 2B, No.4, No.1, No.3, No.8, 8K, HL, 2D, 1D, Mirror Polished, 180G, 320G, 400G Satin/ Hairline, 400G, 500G, 600G or 800G Mirror finish DIN 1.4438 Stainless Steel 317L Tubing or Custom Finish as per customer’s specification |
| Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS |
| Standard | SUS, JIS, AISI, ASTM, GB, DIN, EN |
| Relevant Standard | ASTM A213, ASTM A312, ASTM A269, ASTM A778, ASTM A554, ASTM A249, ASTM A269, ASTM A270, ASTM A789, DIN 17456, DIN17457, DIN 17459, JIS G3459, JIS G3463, GOST9941, EN10216, BS3605, GB13296 |
| SS 317L | Maximum |
|---|---|
| Ni | 11 – 15 |
| C | 0.035 Maximum |
| Mn | 2 Maximum |
| P | 0.040 Maximum |
| S | 0.03 Maximum |
| Si | 1 Maximum |
| Cr | 18 – 20 |
| Mo | 3 – 4 |
| N | – |
| Element | AISI 317L |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Range | 1454 °C (2650 °F) |
| Tensile Stress | Psi – 75000 , MPa – 515 |
| Yield Stress (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| Hardness (Brinell) |
Contact us to get a quick quote for your requirement.
We offers rigorous testing and certification of stainless steel 317 tubing to ensure quality and reliability. Each batch undergoes extensive testing, including chemical composition analysis, mechanical property testing and dimensional verification. Certificates of Compliance (CoC), Mill Test Reports (MTR), and other quality documents have been provided to also ensure transparency.

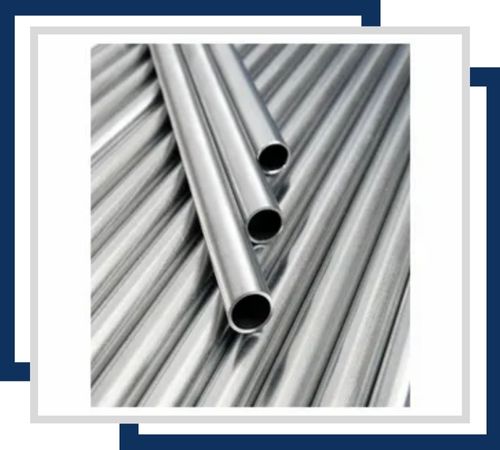

This tubing is produced without welds, offering superior strength and uniformity. It typically ranges from 1/8″ to 12″ in diameter. It is highly resistant to corrosion, particularly in chloride environments.

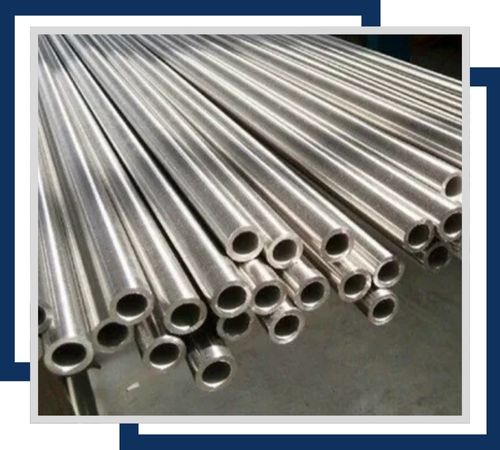

Manufactured by welding a strip of stainless steel, this tubing is suitable for applications requiring moderate strength and corrosion resistance. Sizes generally range from 1/4″ to 6″ in diameter. It provides good resistance to corrosive environments, especially those with chlorides.

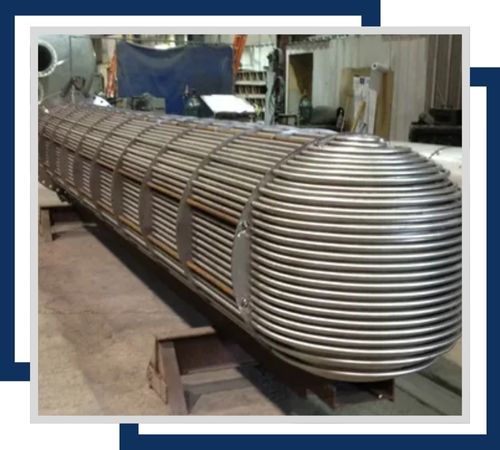

Designed for use in heat exchangers, this tubing is available in diameters from 1/2″ to 2″ and offers excellent heat transfer properties. It is highly resistant to corrosion, making it ideal for aggressive chemical environments.

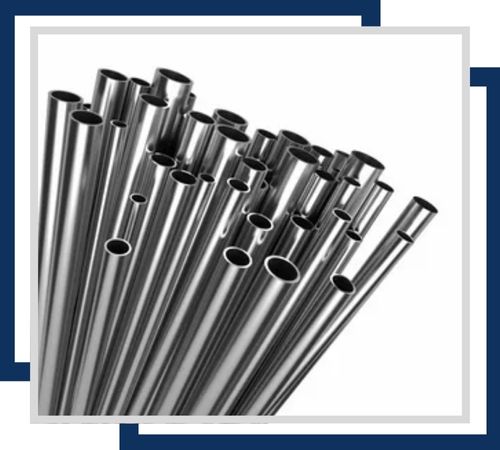

This tubing is used for precise measurement and control applications, with sizes typically ranging from 1/16″ to 2″ in diameter. It offers excellent resistance to corrosion and maintains integrity under high pressure.

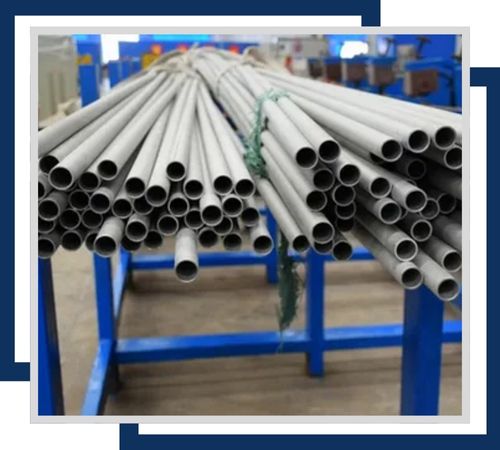

Engineered for high-temperature applications, these tubes usually come in diameters from 1/2″ to 4″. They provide robust resistance to oxidation and scaling, making them suitable for boiler systems.

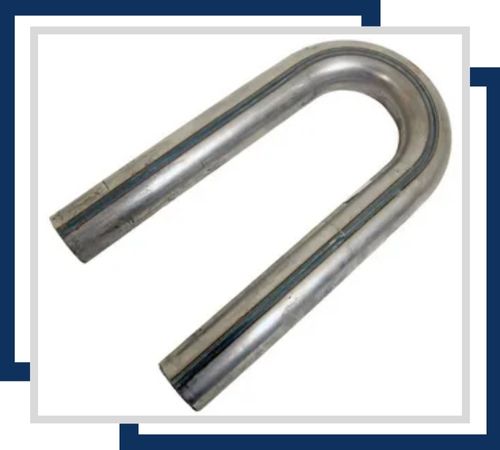

U-Tubes are used in various heat exchanger and condenser applications, with sizes commonly from 1″ to 3″ in diameter. They are highly resistant to corrosion and can withstand the thermal stresses of heat exchange processes.

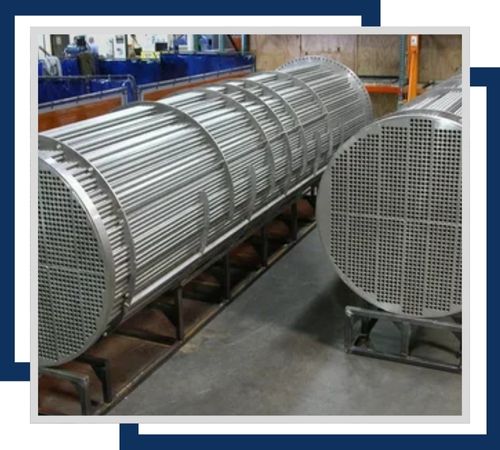

These tubes are specifically designed for condenser systems, with dimensions typically ranging from 1/2″ to 2″ in diameter. They offer excellent resistance to corrosion from steam and other condensate environments.

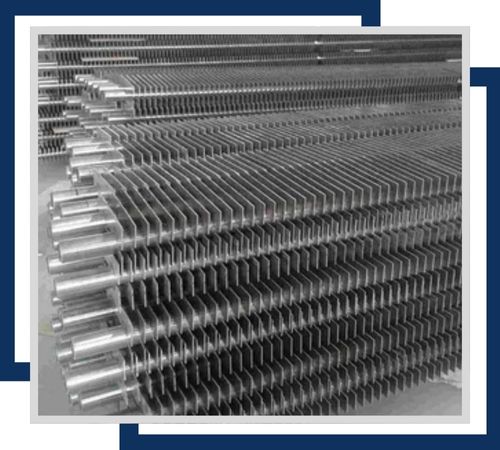

Used for heat transfer applications, these tubes are available in various diameters, often from 1/2″ to 2″. They feature enhanced surface area for improved heat exchange efficiency and are highly resistant to corrosion.
The Stainless Steel 317 tubing produced by Mitchell Stainless is extensively utilized in industries that demand exceptional corrosion resistance and longevity. You’ll find it in a variety of applications, including chemical processing equipment, heat exchangers, condensers, and pulp and paper manufacturing systems. Its robust resistance to chlorides and acidic environments makes it a popular choice in marine settings, oil and gas operations, and pharmaceutical processing. Our tubing is designed to meet the needs of these demanding applications, ensuring reliability and performance where it matters most.
