Home > Stud Bolts > Stainless Steel 316H Stud Bolts
Mitchell Stainless is your go-to manufacturer and supplier of Stainless Steel 316H stud bolts right here in Hamilton, New Zealand. We pride ourselves on providing top-notch fastening solutions tailored for demanding industrial needs. With a keen eye on precision engineering, material traceability, and adherence to international standards, we guarantee stud bolts that deliver exceptional strength, durability, and performance even at high temperatures. Our advanced manufacturing techniques and rigorous quality control processes ensure that our Stainless Steel 316H stud bolts are perfect for critical service conditions. We serve various industries across New Zealand, committed to reliability, timely delivery, and keeping our customers happy.
Stainless Steel 316H stud bolts are primarily made up of chromium, nickel, and molybdenum, featuring a higher carbon content than 316L to boost their strength at elevated temperatures. This unique composition offers outstanding resistance to corrosion, oxidation, and creep when exposed to heat. On the mechanical side, 316H stud bolts showcase impressive tensile strength, solid yield strength, and remarkable toughness. They maintain their structural integrity even at high temperatures, making them perfect for pressure vessels, boilers, and heat exchangers where both strength and corrosion resistance are crucial.
| Fasteners Material Specification | ASTM A194, ASME SA193, UNS S31609 Bolts |
|---|---|
| Standard | DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards |
| Fasteners/ Bolts Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Length | 3 mm to 200 mm |
| Bolts, Studs Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| SS 316h Fasteners Standard: | ANSI – American National Standards Institute
|
| Source of raw materials | Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc. |
| SCOPE OF MANUFACTURE |
|
| Fasteners In Form of: | Hex, Square, Round, Threading as per Gauge Etc. |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| bolting Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Fasteners finishing: | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
316H | Min | 0.04 | 0.04 | 0 | – | – | 16.0 | 2.00 | 10.0 | – |
max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | – |
Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
316H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.

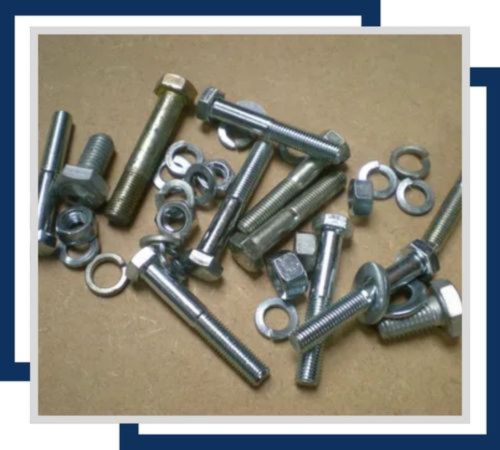

Stainless Steel 316H lag stud bolts offer high strength and superior corrosion resistance, ideal for high-temperature and harsh environments, ensuring durability and reliability in industrial, chemical, and marine applications.

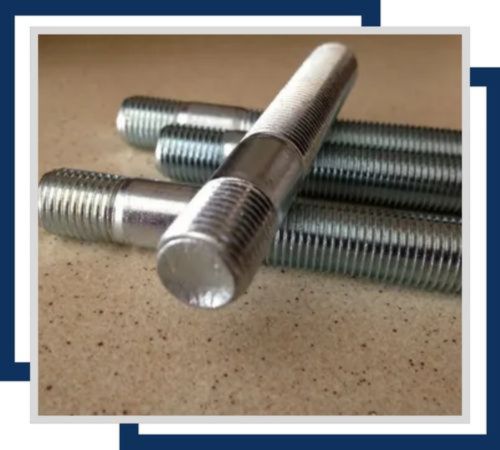

Stainless Steel 316H stud anchor bolts provide high strength and exceptional corrosion resistance, ideal for high-temperature and harsh environments, ensuring secure anchoring in industrial, chemical, and marine applications.

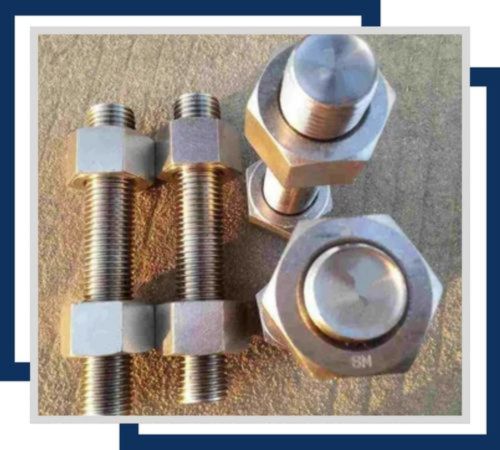

Stainless Steel 316H exhaust stud bolts offer high strength and corrosion resistance, ideal for high-temperature exhaust systems, ensuring durability and reliability in automotive, industrial, and marine applications.
We provide a wide range of certifications by supplying you with only the highest quality standards through our Stainless Steel 316H Stud Bolts. What’s included in our package is commercial invoices, packaging lists, fumigation certificates, heat treatment charts, quality assurance plans, and approved laboratory test reports. We also give you different types of test certificates specifically for your Stainless Steel 316H Stud Bolts. We assure 100 percent client satisfaction with confidence in products by providing them with the proper certifications. It includes MTC as per EN 10204/3.1b, PMI Test Certificate, and 100 percent radiography test report and third-party inspection certificates.
The Stainless Steel 316H stud bolts from Mitchell Stainless are extensively utilized in high-temperature and high-pressure settings. You’ll find them in oil and gas processing units, petrochemical plants, power generation facilities, refineries, and chemical processing equipment. These stud bolts are particularly well-suited for flanged joints, pressure vessels, heat exchangers, and boilers, where thermal stability and corrosion resistance are vital. Their reliability under extreme operating conditions makes them a top choice for industries that demand the best performance.
