At Mitchell Stainless in Hamilton, New Zealand, we supply stainless steel tubing designed for high-temperature and demanding industrial environments. Our Stainless Steel 309 Tubing is an austenitic stainless steel engineered to resist oxidation, scaling, and corrosion at elevated temperatures. Ideal for furnaces, kilns, heat exchangers, and thermal processing systems, these tubes provide reliable strength, durability, and structural stability under extreme conditions. Supported by Mitchell Stainless’ commitment to quality and local expertise, 309 tubing offers a dependable solution for industrial projects requiring high-temperature performance, long-term reliability, and corrosion resistance.
Stainless Steel 309 Tubing is manufactured from an austenitic stainless steel alloy with high chromium and nickel content. This composition provides excellent oxidation and scaling resistance at elevated temperatures while maintaining good corrosion resistance. The tubing offers high tensile strength, toughness, and dimensional stability under prolonged heat exposure. Stainless Steel 309 retains its mechanical performance and structural integrity in continuous high-temperature service, making it suitable for industrial, chemical, and thermal processing applications where durability, heat resistance, and reliable performance are critical.
| Specifications | ASTM A/ASME SA213 / A249 / A269 |
| Dimensions | ASTM, ASME and API |
| SS 309 Tubes Size | 10.29 OD (mm) – 762 OD (mm) |
| Thickness | 0.35 OD (mm) to 6.35 OD (mm) in thickness ranging from 0.1mm to 1.2mm. |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated |
| Form | Round Tubes, Custom Tubes, Square Tubes, Rectangular Tubes, “U” Shape, Hydraulic Tubes |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
| Grade | 309 | |
|---|---|---|
| min | max | |
| C | – | 0.20 |
| Mn | – | 2 |
| Si | – | 1 |
| P | – | 0.045 |
| S | – | 0.030 |
| Cr | 18.0 | 23.0 |
| Mo | – | – |
| Ni | 8.0 | 14.0 |
| N | – | – |
| Grade | 309 | |
|---|---|---|
| Tensile Strength (MPa) min | 620 | |
| Yield Strength 0.2% Proof (MPa) min | 310 | |
| Elongation (% in 50mm) min | 45 | |
| Hardness | Rockwell B (HR B) max | 85 |
| Brinell (HB) max | 169 | |
Contact us to get a quick quote for your requirement.
We provides quality tested Stainless Steel 309 Tubing. All tubing is subjected to dimensional, mechanical and chemical analysis and tested to all industry standards for performance and durability. Compliance certificates are issued along with the products, which assures the strength and reliability of the product for multiple applications in any industry.

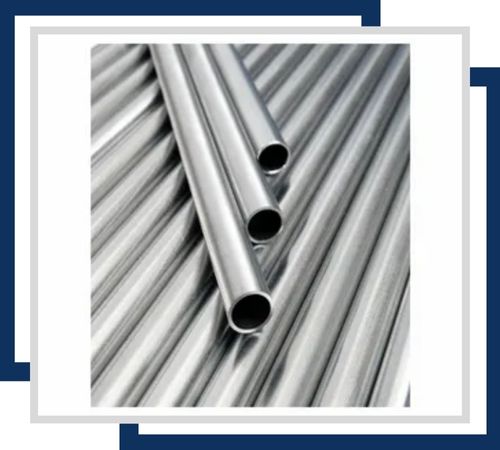

Stainless Steel 309 Seamless Tubing offers excellent corrosion resistance and is available in sizes ranging from 1/8″ to 12″ nominal diameter. It is ideal for high-temperature applications, with superior strength and durability. This tubing type ensures leak-free connections due to its seamless construction.

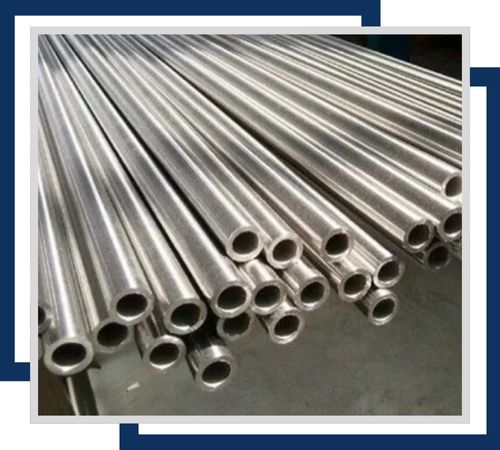

Stainless Steel 309 Welded Tubing provides good corrosion resistance and is available in sizes from 1/8″ to 24″ nominal diameter. It is produced by welding rolled strips of 309 stainless steel, making it cost-effective for various industrial applications. The welded joints are robust, ensuring long-term reliability.

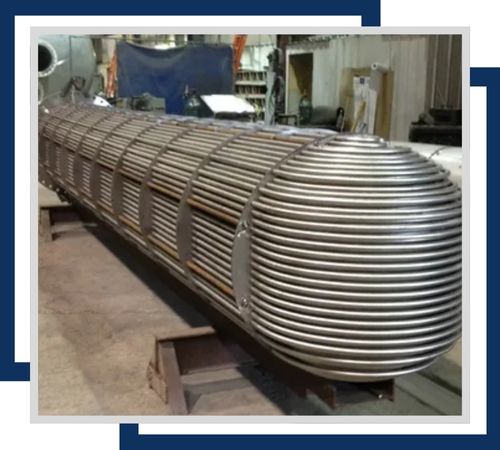

Stainless Steel 309 Heat Exchanger Tube excels in high-temperature environments and comes in sizes from 1/4″ to 12″ outer diameter. Its excellent corrosion resistance makes it suitable for chemical processing and power generation industries. This tubing ensures efficient heat transfer and durability in demanding conditions.

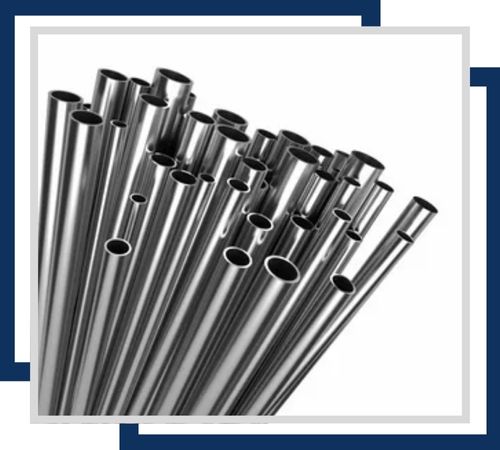

Stainless Steel 309 Instrumentation Tubing, available in sizes from 1/8″ to 1″ nominal diameter, offers superior corrosion resistance and precision. It is ideal for use in high-pressure and high-temperature instrumentation systems. The smooth internal surface ensures accurate and reliable fluid flow.

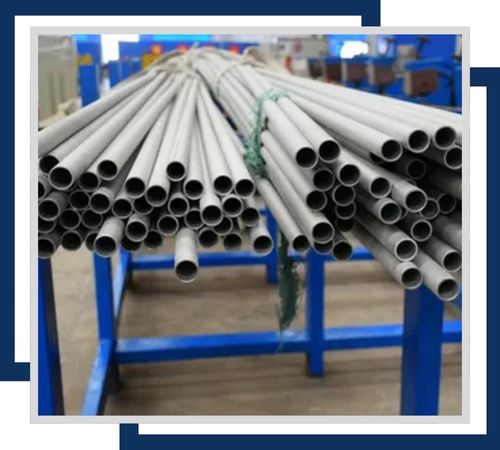

Stainless Steel 309 Boiler Tubes provide exceptional corrosion resistance and are available in sizes from 1/4″ to 5″ outer diameter. They are designed to withstand high temperatures and pressures in boiler systems. These tubes offer longevity and efficiency in steam generation and other heat-related processes.

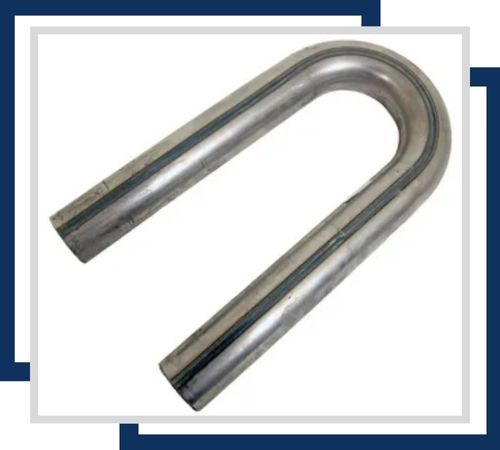

Stainless Steel 309 U-Tubes, with sizes ranging from 1/4″ to 3″ outer diameter, offer excellent corrosion resistance and are shaped for efficient heat exchange in compact spaces. They are widely used in heat exchangers, condensers, and economizers. Their U-shape design ensures optimal thermal performance.

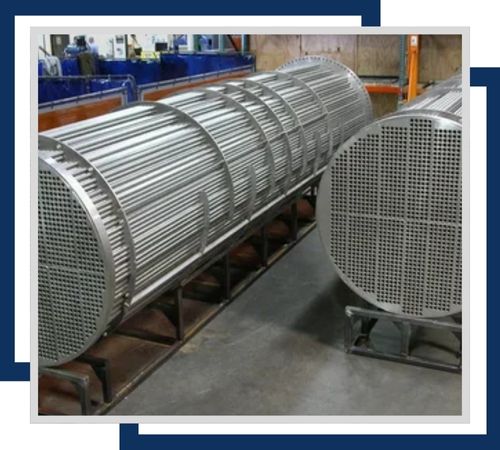

Stainless Steel 309 Condenser Tube provides high corrosion resistance and is available in sizes from 1/4″ to 2″ outer diameter. It is used in condensers for efficient heat transfer in various industrial processes. This tubing type ensures durability and performance in corrosive environments.

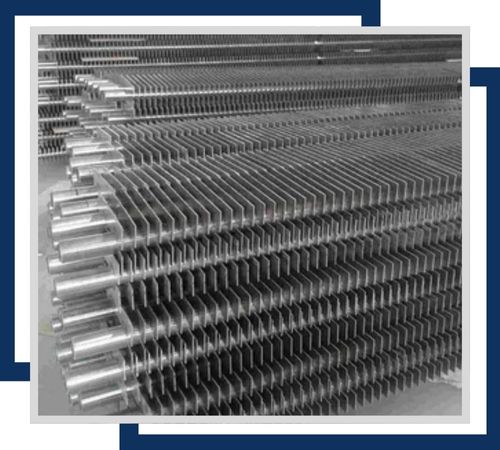

Stainless Steel 309 Fin Tubes, available in sizes from 1/4″ to 3″ outer diameter, offer excellent corrosion resistance and enhanced heat transfer efficiency. The finned design increases the surface area, making them ideal for heat exchangers and cooling systems. These tubes provide reliable performance in high-temperature applications.
Stainless Steel 309 Tubing is commonly used in high-temperature and industrial applications. Typical uses include furnace and kiln systems, heat exchangers, boilers, thermal processing equipment, and petrochemical plant components. They are also suitable for power generation systems, industrial burners, and machinery exposed to sustained heat. At Mitchell Stainless, we supply 309 tubing for projects requiring long-term durability, mechanical strength, and corrosion resistance under extreme heat conditions. Its combination of high-temperature stability, toughness, and structural integrity makes it a trusted solution for industrial, chemical, and thermal engineering applications.
